360 Degree Excavator Quick Hitch 4T Mini Digger Hydraulic Quick Hitch

360 Degree Rotating Excavator Quick Hitch For 0.5-60 Ton Excavator

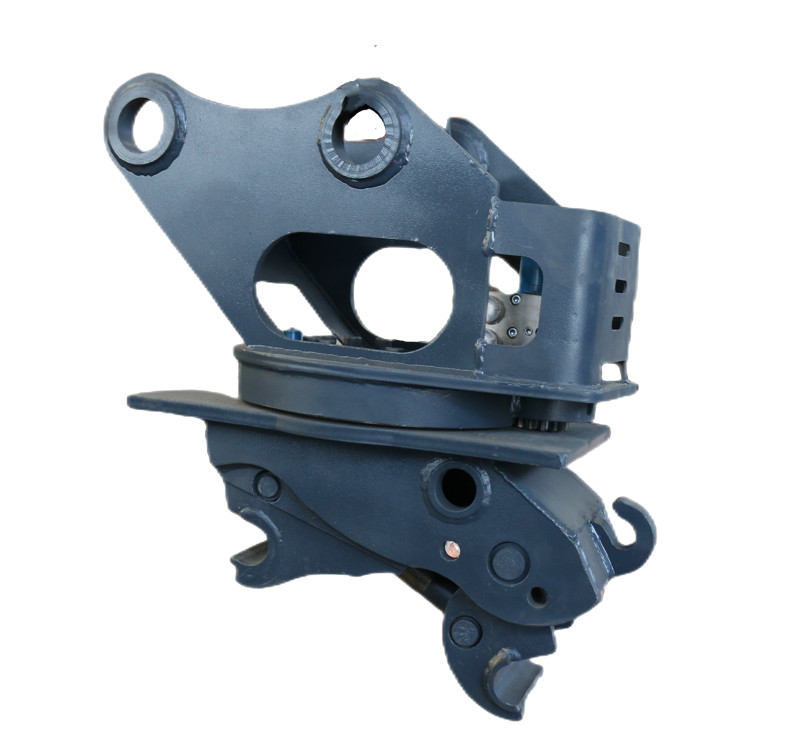

Excavator Quick Hitch | 360° Rotating Type

The top part has an extreme rotary motor and gearing that offer a rotating function than a normal quick hitch. The bottom part still keeps the normal quick hitch advantage, which has two options, one is hydraulic, and one is manual. After the excavator is mounted 360-degree quick hitch, it will tilt to any angle and reach any place when attaching to other excavator attachments. Highly improve the other excavator attachments flexibility and work effection.

Quick Hitch Specification

Category	Unit	CTHB-mini	CTHB-02	CTHB-04	CTHB-06	CTHB-08	CTHB-08S	CTHB-10	CTHB-17
Length	mm	300-450	520-542	581-610	760	920-955	950-1100	965-1100	1005-1150
Width	mm	150-250	260-266	265-283	351-454	450-483	445-493	543-572	602-666
Height	mm	225-270	312	318	400	512	512-540	585	560-615
Arm Width	mm	82-180	155-172	181-205	230-317	290-345	300-350	345-425	380-480
Pins Center Distance	mm	20-45	40-45	45-55	50-70	70-90	90	90-100	100-110
Cylinder Stroke	mm	95-200	200-300	300-350	340-440	420-510	450-530	460-560	500-650
Vertical Pins Center Distance	mm	170-190	200-210	205-220	240-255	300	320	350-370	370-380
Weight	kg	30-40	50-75	80-110	170-210	350-390	370-410	410-520	550-750
Working Pressure	kg/cm^2	30-400	30-400	30-400	30-400	30-400	30-400	30-400	30-400
Necessary Flow	I/mins	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20
Suitable Excavator	ton	1-4	4-6	6-8	12-16	18-25	25-26	26-30	30-40
Adaptor Type	Degree	360	360	360	360	360	360	360	360

* The Parameter above may change with the technology improvement, will not notice additionally, please understand.

360 Degree Quick Hitch Features

The operator can reach any angle when using 360-degree rotating quick coupler.
When attach to other attachments, the excavator will have more versatility, compared to a stand quick hitch.
360-degree rotating even with a full load of the bucket, fully under control.

How to choose the right quick coupler for your excavator

Check if the supplier is a factory. Directly import from a factory, you get guaranteed both quality and leading time.
Consider if the manufacturer has a machine that is highly accurate enough to produce the core components. The high accurate machine would reduce error to near 0 to extremely increase the product's service life.
You can represent other requirements to best fit your excavator when working with a factory that has a technical team.
Consider the quick coupler can perfectly match your excavator, a factory can offer OEM/ODM service to produce the adaptor only for your excavator.
After-sale cost is very important. Good quick couplers are easy to install and connect with other excavator attachments. Details should be noticed, avoid welding parts broken, hitch breakage, oil cylinder leaking oil, and other problems
