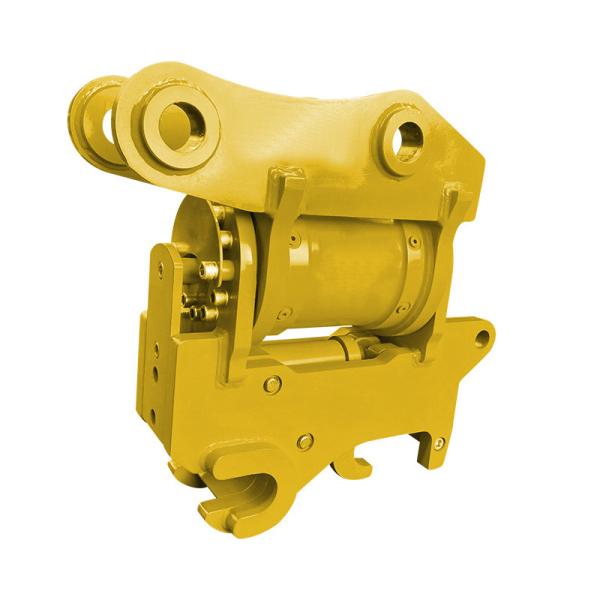

Yellow 5 Lpm Hydraulic Tilt Hitch For 5 Tonne Excavator 42CrMo

Largest Selection Of Excavator Tilt Hitch Manufactures YAKAI Quick Hitch Tilting 180 Degree For 1-1.9 Ton Excavator

180 Degree Tilting Excavator Quick Hitch Description

YAKAI 180-degree tilting quick hitch is one of the excavator attachments that always be your right chico for the right job. When connecting different attachments gets challenging or turning attachments to a different degree cannot be achieved– the CEHNGTAI tilting quick coupler can provide your excavator with maximum versatility.

Yellow 5 Lpm Hydraulic Tilt Hitch For 5 Tonne Excavator 42CrMo

180° Side-to-Side Rotation Quick Hitch Specification

Model	Unit	CTHB-H100	CTHB-H200	CTHB-H300A	CTHB-H300B	CTHB-H400A	CTHB-H400B	CTHB-H600	CTHB-H600B	CTHB-H800
Rotation	Degree	180	180	180	180	180	180	180	180	180
Torque	NM	930	2870	4400	7190	4400	7190	10623	14500	18600
Titling Cylinder Working Pressure	bar	210	210	210	210	210	210	210	210	210
Tilting Cylinder Required Flow	Lpm	2-4	5-16	5-16	5-16	5-16	15-44	19-58	22-67	35-105
Quick Couper Cylinder Working Pressure	bar	25-300	25-300	25-300	25-300	25-300	25-300	25-300	25-300	25-300
Quick Couper Cylinder Required Flow	Lpm	15-25	15-25	15-25	15-25	15-25	15-25	15-25	17-29	20-25
Suitable Excavator	ton	0.8-1.5	2-3.5	4-6	4-6	7-9	7-9	10-15	16-20	20-25
Overall Dimension	LWH (mm)	477280567	477280567	518310585	545310585	541350608	582350649	720450784	800530864	858500911
Total Weight (not include package)	kg	55	112	156	156	170	208	413	445	655

* The Parameter above may change with the technology improvement, will not notice additionally, please understand.

YAKAI 180 Degree Quick Hitch Features Compared to Universal Quick Hitch

180° Side-to-Side Tilting: 90 degrees to one side, 90 degrees to another side
Compact Design: Highly reduce the probability of losing in breakout force
High-Quality Core Components: Core components (Cylinders/ Tilt actuators/Pins and so on) are made of high-strength and anti-wear steel with experienced heat treatment technical to increase the service life of the excavator 180 rotating quick hitch.
Work Simultaneously: Bottom quick hitch detaches and top rotating part can work simultaneously, to achieve save time and improve affections.
Service: Come with the following parts and are well packaged, easy to assemble, and deliver safely.
