9 Ton Hydraulic Hammer Post Driver Length 600mm Skid Steer Post Pounder

Ask Lasest Price
Brand Name :	CTHB
Model Number :	CTHBP530/680/750
Certification :	CE/ISO
Price :	USD 880~1350 / Unit
Payment Terms :	L/C, D/P, T/T
Supply Ability :	400 Units Per Month
Delivery Time :	5-8 Days

Add to Cart

Product Details
Company Profile

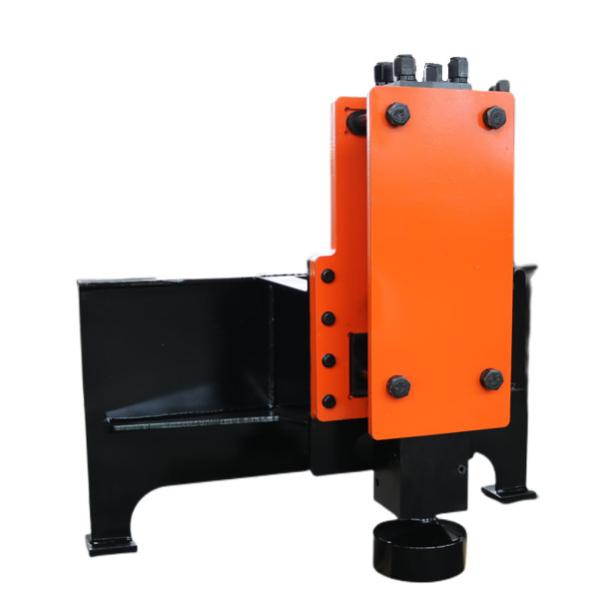

9 Ton Hydraulic Hammer Post Driver Length 600mm Skid Steer Post Pounder

Skid Steer Attachment Post Driver Pounder Wholesale from YAKAI

Hydraulic Hammer Post Driver

Skid Steer Type Post Driver is composed of hydraulic breaker main body, skid steer loader shaft, box type or top type bracket, and post driver chisel tool. The function and quality are at the leading position among any other post drivers on the Chinese market. It is flexible to fit multiple carriers. It is one of the powerful skid steer attachments, a strong bracket with a 3/4 inch mounting plate. What's more, it is not only the post driver but also a concrete breaker to do demolition works just changing the chisel tool. We also have rotating adaptors to deal with tasks on uneven ground. Many Companies choose YAKAI post driver as their first choice due to the high performance, easy use, and low maintenance cost.

Post Driver Specification

YAKAI Skid Steer Loader Attachment ----- Post Driver Chart
Model	Body Weight (incl. chisel tool) (kg)	Total Weight (kg)	Size (LWH) (mm)	Working Oil Flow (I/min)	Hydraulic Pressure (kg/cm^2)	Blow Frequency (bmp)	Chisel Diameter (mm)	Carrier Weight (ton)
CTHBP530	89	155	1417350305	25-50	90-120	600-1100	53	2.5-4.5
CTHBP680	156	361	1660328486	40-70	110-140	500-900	68	4-7
CTHBP750	214	450	1712328486	50-90	120-150	400-800	75	6-9

* The Parameter above may change with the technology improvement, will not notice additionally, please understand.

Domed Cup Chisel Chart

All are standard size, if you have customized requirements, we can offer OEM/ODM with extra cost.

Chisel Top Diameter	Total Length	Chisel Bottom Diameter
φ68-φ70	600 mm	φ 100/120/135/140
φ100	750 mm	φ 135/140/150
φ140	960 mm	φ 180/190/200
φ155	1100 mm	φ 200/220

*Chisel Bottom Diameter Larger than 230 mm need to ask our team

Post Driver Features

Absolutely low-maintenance cost: post drivers allow for easy disassembly and assembly. We design two frames and tightened the breaker main body with the screwers. Connecting with 2 oil pipes and we have a grease hose on the concrete breaker main body for easy lubrication.
Accurate Driving: Customers can add standard plumb bob chain and depth gauge design post driver to notice the depth during driving post hammer. These are optional functions with extra cost.
Warranty and Service: post drivers come with a 1-year warranty and online support service.
Hydraulic Grapple Option: post drivers can select to add a small hydraulic grapple on the side of the post diver. This function allows all works, picking up wood, located right under the post driver, and starting to drive posts, done by one person.
Can drive all kinds of posts, wood posts, steel posts, concrete posts, signposts and etc.

9 Ton Hydraulic Hammer Post Driver Length 600mm Skid Steer Post Pounder

Hydraulic Post Driver Application

It is widely used by individuals and companies. Many homeowners, farmers, ranchers, and other occupants like to use post drivers. Many skid steer loader rental companies, fence companies, and excavator rental companies would also choose our post driver to do the following works:

Drive T-Posts, Pipes
Tent stakes, wooden stakes, and many other stakes.
Pipe fences, farm fences, and all kinds of fences.
Traffic signals or other sign Post
Guard rails, railroad ties.

If you have any further questions, feel free to contact us, our team would help you. "Think Quality - Think Attachments - Think YAKAI"
