Permanent Magnet Excavator Attachments Wholesale For Metal And Scrap YAKAI

Hydraulic Magnet Technical Parameter

* The Parameter above may change with the technology improvement, will not notice additionally, please understand.

* Lifting Ability Influenced by the Permeability of Scrap, the Data Range Would be Various Due to Different Working Condition

YAKAI Excavator Hydraulic Magnet Introduction

The magnet external power supply through the control cabinet of rectifier processing to power a magnetic chuck, in the condition of electricity, produced a powerful electromagnetic suction, convenient to attract iron, steel, scrap, and other iron products. Magnet is composed of built-in electric generation, oil hosing, and outer body.

YAKAI Hydraulic Magnet Features

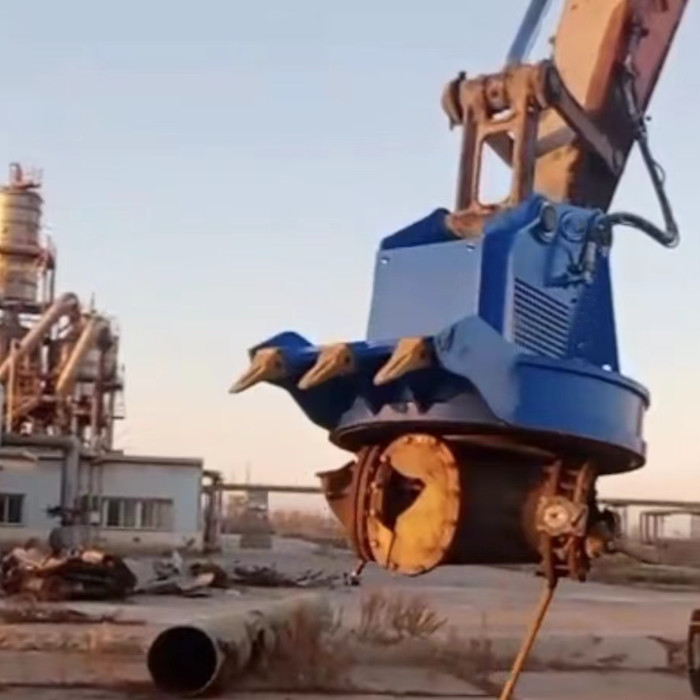

• Option with tooth or without a tooth, the following is an excavator magnet with teeth. It would help clean the concrete rock to find the steel scrap and other iron, and steel objects.
• Rhino horn design is easy to install and use.
• Strong adsorption, lifting, and releasing speed fast.
• High production efficiency, Lightweight, and long service life.
• Special magnetic circuit design, aluminum coil, protection plate with good wear resistance, and the impact resistance of high steel plate.
• Semi-permanent design reduces maintenance costs.
• Only Require 24-volt Excavator Battery, no need to install extra cable

Scrap Magnet Application

• Lifting electromagnetic mainly used in metallurgy, mining, machinery, transportation
• Other industries transport iron and steel, and other magnetic materials.
• Also used as an electromagnetic manipulator, clamping steel, and other magnetic materials
• Suitable for handling cast iron ingot, steel balls, and scrap steel.

Tips you need to know before installing hydraulic magnet on your excavator

• First, confirm whether the components of the excavator suction cup are complete and clean before the installation process.
• Second, there are hoisting screw holes on both sides of the suction cup of the excavator.
• Third, During installation, only T-shaped screws need to be screwed in to complete the hoisting, and then the T-shaped blocks and screws are used to fix it on the workbench, and then connect the mechanical equipment.
• DC power supply and ground wire, and then finely grind the upper plane of the suction cup of the excavator once so that the parallelism of the upper plane and the bottom surface can be kept consistent, and there will be no gap between the two planes during the specific construction process.
• affecting work efficiency. When completing the above installation progress, it is necessary to carry out commissioning first, which is to overlap the two adjacent magnetic poles to obtain sufficient positioning suction, and then operate the construction normally. If there are no problems with the whole process, then press the controller button to easily power up and demagnetize.
• But if there is any problem in the process, you need to turn off the power immediately, stop for inspection and maintenance, check the problem in time, and then do this until the problem is solved.
• Do not continue to operate when there is a problem, it is easy to damage the excavator and hydraulic magnet.
