0.04 Cbm Hydraulic Mini Excavator 1.7 Ton Mini Compact Excavator

Product Categories

Yakai Precision Machinery (Yantai) Co., Ltd

Contact Now

0.04 Cbm Hydraulic Mini Excavator 1.7 Ton Mini Compact Excavator

Ask Lasest Price
Brand Name :	DaYan.HB
Model Number :	DY16-9B / DY16-9BE
Certification :	CE
Price :	USD 18000 ~ 32000 / Unit
Payment Terms :	L/C, D/P, T/T
Supply Ability :	50 Units per Month
Delivery Time :	5-8 Days or Negotiated

Add to Cart

Product Details
Company Profile

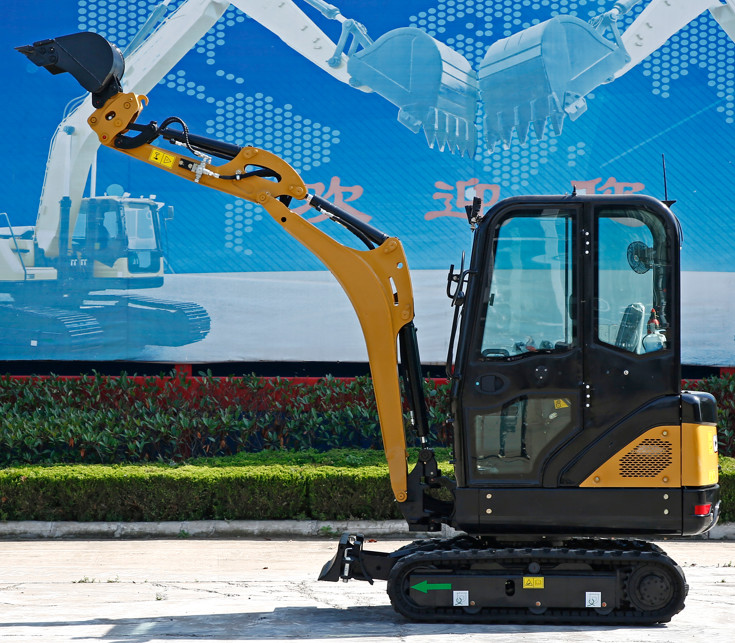

0.04 Cbm Hydraulic Mini Excavator 1.7 Ton Mini Compact Excavator

YAKAI 1.7 Ton Mini Compact Excavators Construction Equipment

0.04 Cbm Hydraulic Mini Excavator 1.7 Ton Mini Compact Excavator

Mini Excavator Specification - CT16B

0.04 Cbm Hydraulic Mini Excavator 1.7 Ton Mini Compact Excavator

Model	DY16-9B		DY16-9BE
Model	(Euro5)	(Euro5 & EPA4)	(Euro5)	(Euro5 & EPA4)
Operating weight (ton)	1.7	1.7	1.7	1.7
Bucket capacity (cbm)	0.04	0.04	0.04	0.04
Engine model	YANMAR 3TNV70	YANMAR 3TNV74F	YANMAR 3TNV70	YANMAR 3TNV74F
Rated power (kw/r/min)	10.3/2200	11.2/2400	10.3/2200	11.2/2400
Hydraulic pump model	NACHI	NACHI	China Brand	China Brand
Max.flow (L/min)	49.5	49.5	39.6	43.2
Working pressure (Mpa)	21	21	21	21
Control valve model	Hydro Control	Hydro Control	China Brand	China Brand
Swing motor model	EATON	EATON	EATON	EATON
Travel motor model	EATON or LKC	EATON or LKC	EATON	EATON
Fuel tank capacity (L)	22	22	19	19
Hydraulic oil tank capacity (L)	21	21	21	21
Travel speed (km/h)	2.1/4.2	2.1/4.2	2.7	2.8
Swing speed (r/min)	8.5	8.5	10.3	10.5
Max. climbing degree (%)	58	58	58	58
Arm digging force	8.6	8.6	10.2	10.2
Bucket digging force (KN)	13.5	13.5	14.8	14.8
Average grounding pressure (Kpa)	28	28	28	28
A-Overall length (mm)	3707	3707	3707	3707
B-Overall width (mm)	1000	1000	1000	1000
C-Overall height (to top of the boom)(mm)	1170	1170	1170	1170
D-Overall height (to top of cab)(mm)	2424	2424	2424	2424
E-Counterweight ground clearance(mm)	484	484	484	484
F-Min. ground clearance (mm)	175	175	175	175
G-Tail swing radius (mm)	665	665	665	665
H-Track Ground length (mm)	1210	1210	1210	1210
J-Track length (mm)	1588	1588	1588	1588
K-Track gauge (mm)	760 (1090 after extension)
L-Track width (mm)	990 (1320 after extension)
M-Track shoe width (mm)	230	230	230	230
N-Turntable width (mm)	1000	1000	1000	1000
O-Max. digging height (mm)	3327	3327	3327	3327
P-Max. dumping height (mm)	2323	2323	2323	2323
Q-Max. digging depth (mm)	2110	2110	2110	2110
R-Max. vertical wall digging depth (mm)	1600	1600	1600	1600
T-Max. digging reach (mm)	3947	3947	3947	3947
U-Max. digging reach at ground level (mm)	3889	3889	3889	3889
V-Min. swing radius (mm)	1625	1625	1625	1625
X-Distance between the center of rotation and tail length (mm)	665	665	665	665
Y-Track shoe thickness (mm)	-	-	-	-
Z-Height of counterweight (mm)	794	794	794	794
A1-Ground length (in transportation)(mm)	2611	2611	2611	2611
Arm length (mm)	950	950	950	950
Boom length (mm)	1830	1830	1830	1830
Boom deflection angle left/right(°)	56/52	56/52	56/52	56/52
Max.pushing height/depth(mm)	240/198	240/198	240/198	240/198

* The Parameter above may change with the technology improvement, will not notice additionally, please understand.

What Are Mini Excavators? | YAKAI Mini Excavators

Mini excavator usually refers to excavators under 2 tons, and the total width is generally less than 1.5 meters. Because of its small size, mini excavators have very good passability. Basically, small environments can pass freely, and they are widely used for small area and small construction environments.

0.04 Cbm Hydraulic Mini Excavator 1.7 Ton Mini Compact Excavator

What Can Mini Excavators Do? | Mini Excavators Application

It can be used in various large and medium-sized construction sites that after large excavator's task is completed. Small excavator or mini excavator are used for the rest trimming task and so on.

It can be used in various small environments and file, such as

Construction on greenhouses, gardens, fruit trees, tea gardens and other environments, for digging trenches, digging trenches, planting trees, leveling, etc.
Indoor engineering work, like building a garag, decorating or rebuilding the basement, etc;
Municipal construction works, which are used to dig urban drainage pipes, cable trenches, etc.

Basically, all kinds of operations can be carried out in it more conveniently.
