Under Water Screening Bucket With Water Proof Motor
Water Proof Motor Screening Bucket Specification
| Model | Suitable Carrier Weight | Bucket Capacity | Bucket Weight | Oil Flow | Working Pressure |
| ton | m^3 | kg | L/min | Mpa |
| DY750 | 6-9 | 0.5 | 650 | 10-20 | 10-16 |
| DY1500 | 15-25 | 0.8 | 1200 | 20-50 | 16-23 |
| DY2000 | 15-25 | 1.6 | 2000 | 45-80 | 16-23 |
| DY3000 | 26-35 | 2.4 | 3200 | 45-80 | 16-23 |
* For other mesh sizes, we can customize service, OEM/ODM* The
Parameter above may change with the technology improvement, will
not notice additionally, please understand.
Precautions:
1. The screening bucket works in an environment of -20℃-50℃
2. The screening bucket avoids overload operation
3. The diameter of the screening stones in the screening bucket
should not exceed 20CM.
CT2000 Outer Dimension

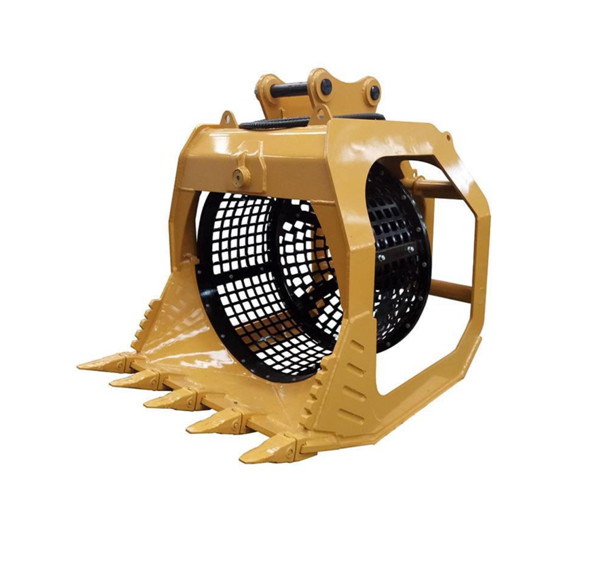

What is a Screening Bucket?| Excavator Screening Bucket
The screening bucket is a multifunctional auxiliary tool for
construction machinery, which can be assembled on excavators,
loaders, or skid steers. The screening, crushing, aeration, mixing,
separation, feeding, and loading of solid materials can be
completed in one step by using the screening bucket.
Two types of motors, wet-dry motor and dry motor. Wet-dry type can
use underwater, which means a screening bucket can do the
underwater task. For example, cleaning the river, screening the
rock on the beach, or in the sea, etc.
Try motor can only apply inland work conditions.
Customers choose motors based on their working conditions.
Why Choose YAKAI Screening Bucket?| Best Screening Bucket
- Sieve size from 10mm to 150mm optional
- Hydraulic motors, oil pipelines, and other vulnerable parts are
provided with reliable protective covers
- The tooth tips and inner protection of the bucket body are made of
high wear-resistant steel, and the structure of the force-bearing
part of the bucket body is strengthened.
- Each connection of the bucket body is fitted with steel sleeves
with pin shafts.
- All hydraulic parts are protected by a closed structure, and
process holes are opened at the corresponding positions to ensure
the convenience of maintenance
What Can Screening Bucket Screen?
The screening bucket can be rotated forward and reverse, which is
easy to screen, such as
topsoil, excavation soil, muck, polluted soil, clay, peat, bark,
compost material, and other solid organic matter.
The underwater task, cleaning rocks, and other objects underwater.
Precautions:
1. The screening bucket works in an environment of -20℃-50℃
2. The screening bucket avoids overload operation
3. The diameter of the screening stones in the screening bucket
should not exceed 20CM.
