High-Quality Hydraulic Earth Auger Drill For 1.5 Ton To 35 Ton
Excavator
Earth Auger Attachments
The excavator auger is light and flexible, does not occupy a large
area, and can be carried with the excavator or skid steer loader.
The drilling rod specification of the auger has a diameter range of
150mm-1500mm, and the maximum drilling depth can reach 10 meters.
The excavator auger consists of a drive unit, a drilling rod, and a
hitch. The earth augers are hydraulically driven, so they can be
assembled and used on equipment driven by hydraulic systems such as
excavators and loaders. The excavator auger has strong power, and a
soil pit with a diameter of 50 cm and a depth of two meters can be
completed in about 1 minute.
Earth Auger Specification
| Auger Model | 2000 | 3000 | 4500 | 6000 | 8000 | 10000 | 15000 | 20000 | 25000 | 50000 |
| Suitable Carrier Weight | 1.5-3T | 2-4T | 3-5T | 4-6T | 6-8T | 6-10T | 10-15T | 15-20T | 15-25T | 20T-35T |
| Torque(MAX) | 2000Nm | 3000Nm | 4500Nm | 6000Nm | 8000Nm | 9000Nm | 15000Nm | 20000Nm | 25000Nm | 50000Nm |
| Working Pressure | 60-240Bar | 70-240Bar | 70-240Bar | 80-240Bar | 80-240Bar | 80-240Bar | 80-240Bar | 80-240Bar | 80-310Bar | 80-360Bar |
| Flow | 20-70Lpm | 25-70Lpm | 20-80Lpm | 50-85Lpm | 50-85Lpm | 50-125Lpm | 60-180Lpm | 75-220Lpm | 75-280Lpm | 75-320Lpm |
| Output Shaft(mm) | OD65,Hex35 | OD65,Hex51 | OD65,Hex51 | 75 Square | 75 Square | 75 Square | 75 Square | 75 Square | 75 Square | 110 Square |
| Machine Diameter | 190mm | 232mm | 238mm | 245mm | 272mm | 280mm | 338mm | 345mm | 355mm | 420mm |
| Rotating Speed (Max) | 65r/min | 60r/min | 56r/min | 50r/min | 48r/min | 45r/min | 38r/min | 35r/min | 28r/min | 20r/min |
| Machine Weight | 28kg | 74kg | 95kg | 134kg | 160kg | 168kg | 240kg | 272kg | 320kg | 540kg |
| Drilling Diameter(mm) | 100-400 | 100-600 | 100-700 | 100-700 | 100-900 | 100-1000 | 200-1500 | 200-1500 | 300-1800 | 300-1800 |
* For other diameters and lengths, we can customize service,
OEM/ODM
* The Parameter above may change with the technology improvement,
will not notice additionally, please understand.
Customize Your Own Earth Auger Based on Your Work Condition
| Earth Auger Drill Extension Rod |
| Diameter | Length |
| φ89 mm | 1500 mm |
| φ108 mm |
| φ146 mm |
* For other diameters and lengths, we can customize service,
OEM/ODM
| Optional Diameter |
| φ150 | φ200 | φ250 | φ300 | φ400 | φ500 | φ600 | φ700 | φ800 | φ900 | φ1000 | φ1200 |
*standard earth auger bits are 1.5 meters in length, diameter is 1
meter
Earth Auger Application
Applied to multiple constructions:
- High-speed rail catenary support
- Slope protection pile
- Solar photovoltaic power station
- Foundation support frame
- Power grid reconstruction
- Civil construction
- New rural city construction
- Municipal construction project
- Landscaping and other projects
CT Earth Auger Features
- Output shafts are available in OD65 / Hex51 / Hex35 / 75 Square /
110 Square
- Can work with brackets on excavator and without brackets on
excavator
- Offer OEM couplers fit in Skid Steer Loader, Excavator, Backhoe
Loader, and many other Carriers
- Quality Motor Offers Higher Torque Power, Drilling Different Type
Soil
How To Use Excavator Earth Auger | Helpful Tips
The excavator auger is easy to install and disassemble. The
disassembly time is similar to that of changing bucket, and the
left and right swing angles are 36°. When the excavator is not flat
on the construction site, the excavator can adjust the angle of the
drill pipe according to the different positions, and keep the 90°
vertical drilling.
There is no need to clear soil for drilling, and all drilling jobs
can be done by one person. After drilling to the depth you want,

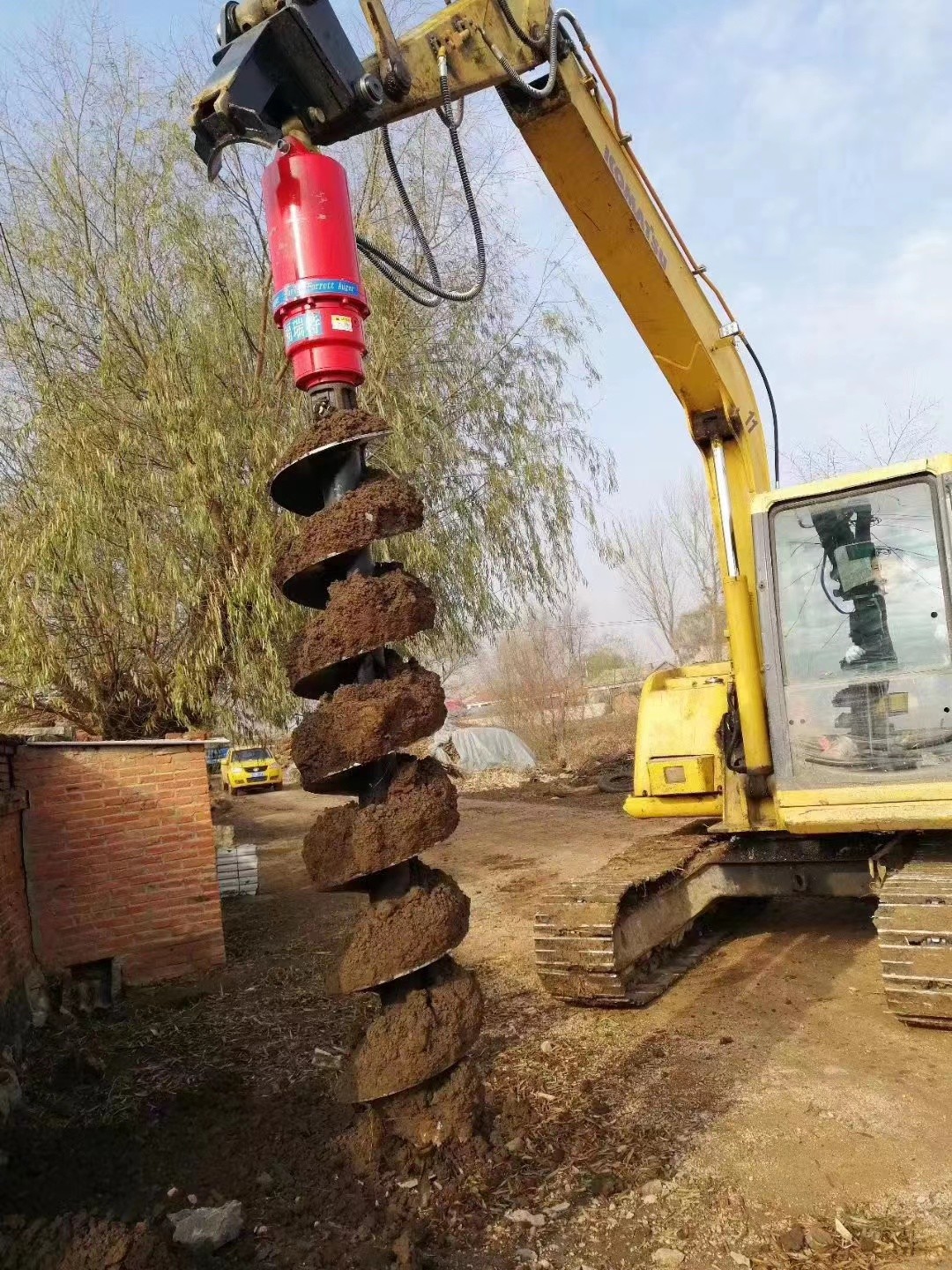

use an excavator boom to lift the drilling rod, the soil is
attached to the screw blade and rarely falls back.
After lifting out of the hoe, just turn the drilling rod forward
and reverse, soil will fall naturally.
One person one excavator one YAKAI earth auger drill can handle all
drilling work, and can greatly improve work efficiency.
