6-9 Ton Excavator Mounted Magnet Attachment For Heavy-Duty Scrap & Demolition For Sale

Hydraulic Magnet Technical Parameter

* The Parameter above may change with the technology improvement, will not notice additionally, please understand.

* Lifting Ability Influenced by the Permeability of Scrap, the Data Range Would be Various Due to Different Working Condition

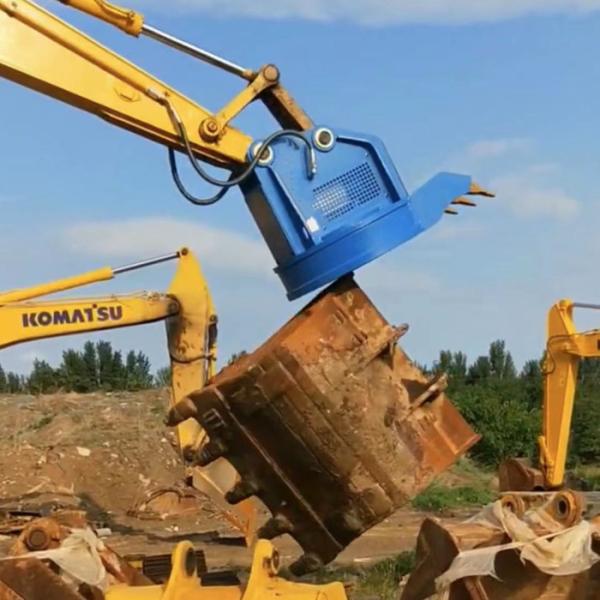

Hydraulic Magent for Excavator Introduction
The Magnet is composed of built-in electric generation, oil hosing, and an outer body.

Hydraulic magnet generator: The built-in generator uses advanced control technology to quickly pick up material through rapid magnetization and pulse excitation and automatically demagnetizes through reverse voltage and sequential pulses to release material.

Hydraulic Magnet Features

• High-Speed lifting and release operations can finish tasks quickly and efficiently.
• Before delivery, and related accessories are matched, the user scene, as long as according to the manual data, configuration cable, can install, save the installation
• Hydraulic Drive, No need to install electric cable, easy install, saves time and labor.
• Movable Special Steel-made the outer cover, not only protects the whole generator but also is easy to replace and maintain.
• Cost Saving, No Need to install cable leads to save the cost.
• Easy Installation, Directly connect the hydraulic breaker oil pump to the magnet, it would work
• Easy Operate, price includes a foot pedal, convenient to control to attack or distract​
• Semi-permanent design reduces maintenance costs.
• Only Require 24-volt Excavator Battery, no need to install extra cable

Scrap Magnet Application

The equipment used for hoisting steel and other magnetic materials in

• metallurgy
• mining
• machinery
• transportation
• and other industries
• and used as an electromagnetic manipulator, clamping steel, and other magnetic materials.​

Tips you need to know before installing hydraulic magnet on your excavator

• First, confirm whether the components of the excavator suction cup are complete and clean before the installation process.
• Second, there are hoisting screw holes on both sides of the suction cup of the excavator.
• Third, During installation, only T-shaped screws need to be screwed in to complete the hoisting, and then the T-shaped blocks and screws are used to fix it on the workbench, and then connect the mechanical equipment.
• DC power supply and ground wire, and then finely grind the upper plane of the suction cup of the excavator once so that the parallelism of the upper plane and the bottom surface can be kept consistent, and there will be no gap between the two planes during the specific construction process.
• affecting work efficiency. When completing the above installation progress, it is necessary to carry out commissioning first, which is to overlap the two adjacent magnetic poles to obtain sufficient positioning suction, and then operate the construction normally. If there are no problems with the whole process, then press the controller button to easily power up and demagnetize.
• But if there is any problem in the process, you need to turn off the power immediately, stop for inspection and maintenance, check the problem in time, and then do this until the problem is solved.
• Do not continue to operate when there is a problem, it is easy to damage the excavator and hydraulic magnet.
