YAKAI Vibratory Hammer for Excavator Weight from 12 tons to 45 tons
Vibratory Hammer:
A vibratory hammer, also known as Pile Sheet Hammer / Driver, is
Mainly Used for Pushing in or Pulling out the Operation of
Different Shape Pipes / Steel Sheet Plates, etc.
Which Excavator Attachments Could be Used for Sheet Metal Work? The
Answer is Pile Sheet Drive! It would Quickly Push the Metal Sheet,
Pipes, or Other Stuff into the Soil by Producing Vertical Power.
Factory Produce Process:
Excavator Vibro Hammer Specification:
Model
| Eccentric Moment | Suitable Excavator | Drilling Depth | Frequency | Centrifugal Force | Working Pressure | Working Flow | Max Turning Degree | Weight |
| Main Body | Vice Arm | Total Weight |
Nm | ton | m | rpm | kN | bar | Ipm | degree | kg | kg | kg |
| DYA150S | 32 | 12-17 | 5 | 2500 | 172 | 300 | 120 | 180 | 1300 | 260 | 1560 |
| DYA250S | 36 | 20-26 | 5-11 | 2800 | 265 | 300 | 155 | 180 | 1900 | 400 | 2300 |
| DYA330S | 50 | 28-35 | 12-15 | 2800 | 420 | 320 | 168 | 180 | 2650 | 650 | 3300 |
| DYA350S | 65 | 35-40 | 15-18 | 2800 | 580 | 320 | 210 | 180 | 2900 | 650 | 3550 |
| DYA450S | 85 | 40-45 | 18 | 2800 | 750 | 320 | 255 | 180 | 3000 | 650 | 3650 |
* The Parameter above may change with the technology improvement,
will not notice additionally, please understand.
YAKAI Pile Sheet Hammer Features
- Elastomer: High-Performance Imported Damping Rubber Block, Slable
Quality, and Long Service Life.
- Ventilation Port: To Ensure the Balance of Pressure in the Gearbox,
Stable and Removal.
- Adaptor Rotating System: 360° Rotation Disc.
- Rotation Arm: 180° Rotation Arm Detachable Boom and Turnover Shelf.
- Gear Box: Using Original Imported Hydraulic Motor, Double
Efficiency, Excellent Quality.
- Main Clamp: Double Pressure Protection System, Stable Design with
Powerful Clamp Force.
Extension Boom
Pile Driver Extension Boom, Also Known as Vice Arm, is the
Connection Boom between Pile Sheet Hammer and Excavator. We have
two designs for Extension Boom. One is a Valve Located near to
External Cover of the Excavator, Second Design is Improved, the Control Center Built-in Extension Boom Would Make the Installation
Easier. The Following Picture is Valve Built-in Vice Arm.
*If you have a demand for a longer extension boom, we could offer a
customized Extension Arm at extra cost.
Vibro Hammer Clamp
We have various design clamps for different working conditions:
- Fixed Clamp: for Photovoltaic, for Cement, for Cement Cuboid;
- Movable Clamp: Metal Steel, Cement Mixing Pile, Cement Round Pile,
Cement Cuboid Pile;

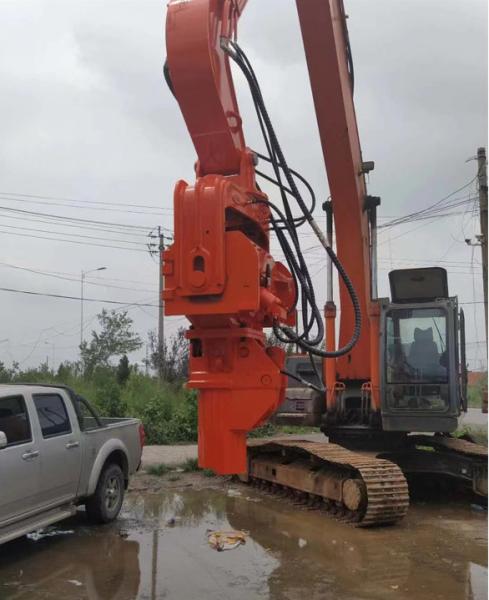

Vibratory Hammer Real Work shot
