YAKAI Excavator Rock Grinder Attachment Supplier For Rock Grinding

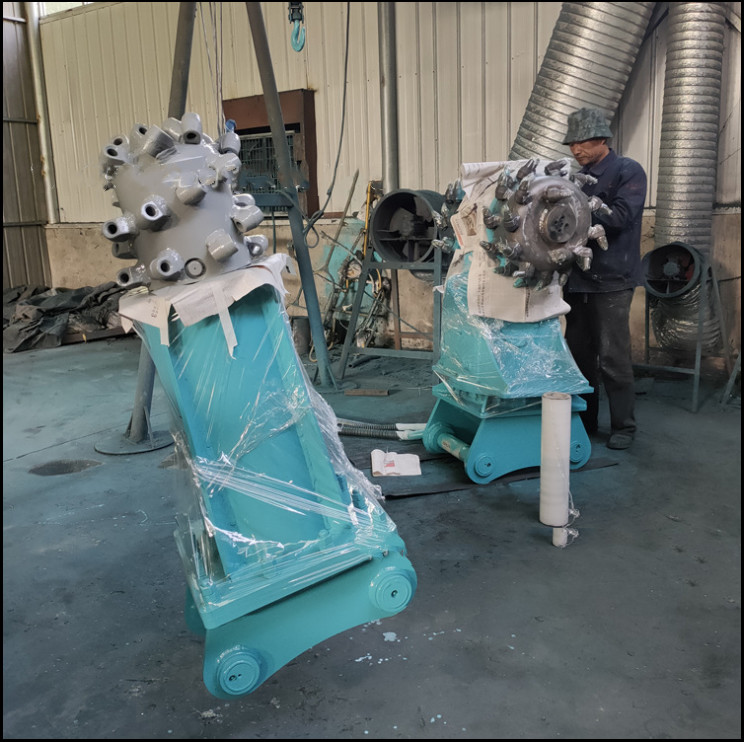

Excavator Drum Cutter Description
Drum cutter is especially suitable for the lot not suitable for
blasting construction; The milling and digging machine has the
advantages of simple operation, high controllability, and clear and
accurate excavation contour. It can easily solve the problems of
undercutting and repairing the tunnel, gouging on the inner
surface, and excavating of side ditch.
Drum Cutter Specification
| Model | DY-DC780 | DY-DC1000 | DY-DC1250 | DY-DC1350 |
|---|
| Recommend Excavator Weight (ton) | 10-20 | 20-40 | 40-55 | 60-80 |
|---|
| Rated Power (kW) | 70 | 120 | 160 | 200 |
|---|
| Machine Height A(mm) | 1160 | 1450 | 1670 | 1780 |
|---|
| Machine Width B (mm) | 780 | 1000 | 1250 | 1350 |
|---|
| Head Diameter C (mm) | 560 | 680 | 700 | 810 |
|---|
| Machine Weight (kg) | 850 | 1850 | 2600 | 3600 |
|---|
| Working Flow (L/min) | 120-150 | 200-300 | 300-400 | 350-450 |
|---|
| Recommended RPM (RPM) | 85 | 80 | 70 | 55 |
|---|
| Working Pressure (bar) | 380 | 380 | 380 | 380 |
|---|
| Max Output Torque(m) | 11000 | 25000 | 36000 | 50000 |
|---|
| Number of Cutters (Pcs) | 48 | 48 | 56 | 64 |
|---|
* The Parameter above may change with the technology improvement,
will not notice additionally, please understand.
1. Max oil flow and pressure shown in the table cannot be achieved
at the same time. Contact us to know hydraulic requirements under
actual conditions.
2. Values for torque and cutting force shown in the table above are
those achieved with the theoretical options. When not sure about
the options, please contact us.
Advantages of YAKAI Excavator Drum Cutters
- The disturbance to the surrounding rock is reduced, and the rock
strength decline is caused by blasting vibration which is not easy
to cause large-scale deformation and local collapse.
- Long service life, durable milling head bearing structure, and
wear-resistant cutter head.
- Widely Apply, It can cut medium hard and below medium hard rock in
large areas.
- Relatively Low noise, Can be used in multiple operating
environments
Application
The Hydraulic drum cutter can be supplied with either
scaling/grinding or rock cutting drums. Mainly used for rock or
concrete walls, ditching, removal of soft rock, and frozen soil.
It is widely used in the excavation of tunnels, ditches, and
municipal pipelines. Road fragmentation, mining, rock, and frozen
soil excavation. Open-pit coal mine excavation, surface creation,
steel industry, forestry, and other construction fields.
