Backhoe Loader Hydraulic Breaker Hammer Banana Type Rock Hammer
CTHB40

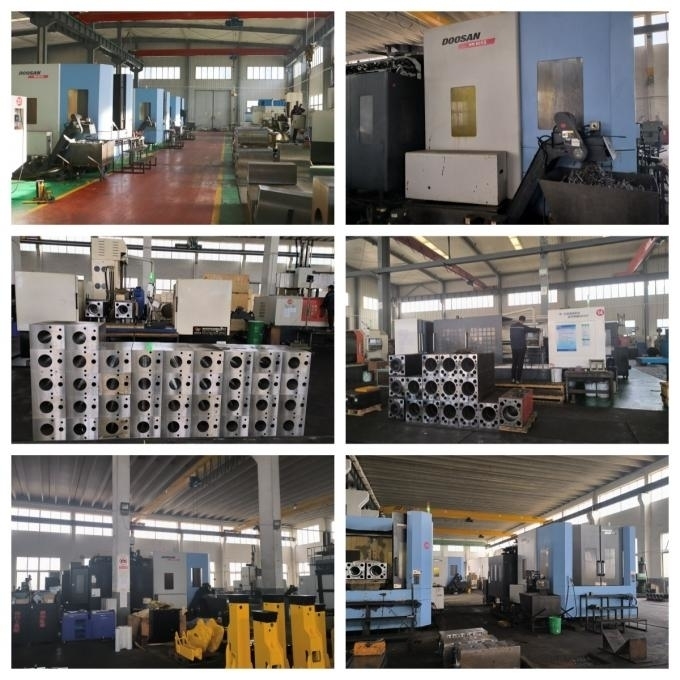

1. Factory Introduction:
Yakai Precision Machinery is a trading company that mainly exports
hydraulic breaker hammer and other excavator attachments in China,
founded in 2013.
Since the found year, we focus on exporting hydraulic attachments.
We have been running our factory for more than 10 years with the
professional experience. Yakai can export many other products and
help our customers source most kinds of products in China, not only
limited to excavator attachments.
Our main products are Hydraulic Breaker Hammer, Quick Hitch, Auger
Drill, Hydraulic Plate Compactor, Hydraulic Grapple, etc. can be
widlely mounted on excavators, skid steer loaders, backhoe loaders, and other
hydraulic machines.
We always hold the service tenet of Client first, Quality first in
our mind, and are strict with the Quality inspection process.
Yakai Welcome Your Visit!

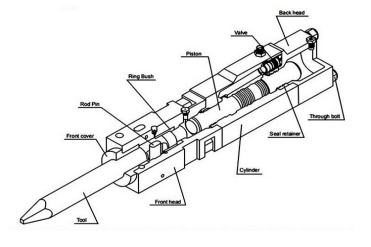

2. Hydraulic Breaker Hammer Structure
a. Cylinder
b. Valve Assembly
Easy maintenance and prevent cylinder from deforming.
c. Piston
Piston moves, hits the chisel, so kinetic energy of piston’s motion
is converted to breakers’ impact power.
d. Front Head
Front head supports the whole breaker.
e. Chisel Pin
f. Chisel Bush
g. Chisel
Special super heat treatment. Moil point, blunt, and wedge chisel
optional.
3.How to Choose the Breaker Hammer According to Your Excavator
| Excavator (loader)weight | Excavator (loader)Brand | Suit breaker model | Chisel diameter |
| 0.8-2.5Ton | Any Brand | CTHB10 | 40mm |
| 1.2-3Ton | Any Brand | CTHB20 | 45mm |
| 2.5-4.5Ton | Any Brand | CTHB30 | 53mm |
| 4-7Ton | Any Brand | CTHB40 | 68mm |
| 6-9Ton | Any Brand | CTHB43 | 75mm |
| 7-14Ton | Any Brand | CTHB45 | 85mm |
| 10-15Ton | Any Brand | CTHB50 | 100mm |
| 18-26Ton | Any Brand | CTHB81 | 140mm |
| 28-35Ton | Any Brand | CTHB121 | 155mm |
| 30-45Ton | Any Brand | CTHB131 | 165mm |
| 30-50Ton | Any Brand | CTHB140 | 165mm |
| 35-45Ton | Any Brand | CTHB151 | 175mm |
| 40-55Ton | Any Brand | CTHB151F | 175mm |
| 45-55Ton | Any Brand | CTHB190 | 190mm |

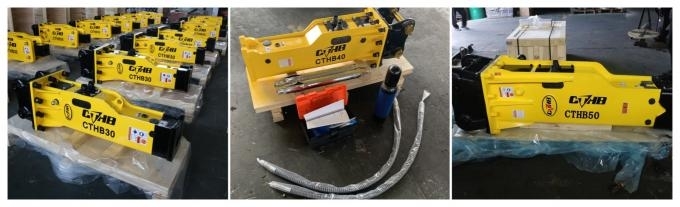

4. All Types of Breaker Hammer
Box Type Hydraulic Breaker Hammer
Side Type Hydraulic Breaker Hammer
Top Type Hydraulic Breaker Hammer
Furukawa Series Hydraulic Breaker Hammer
Skid Steer Type Hydraulic Breaker Hammer

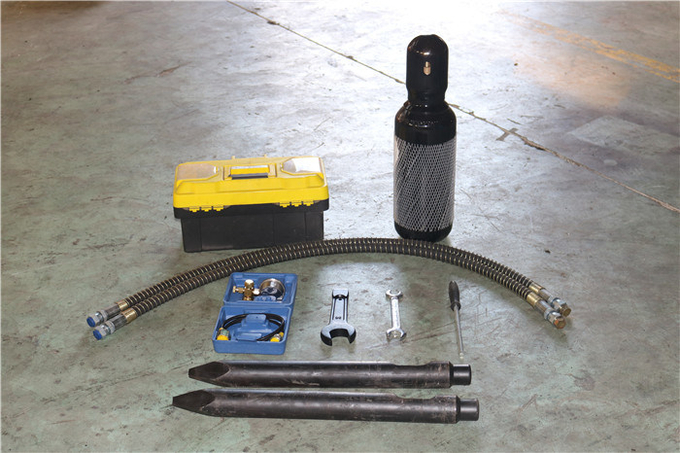

5.The Accessories for One Set of Breaker Hammer
1) Chisel × 2 pcs
2) Hydraulic oil Hose × 2 pcs
3) General Tool with Tool Box × 1 set
4) Manual Book in English × 1 pc
5) Nitrogen Gas Charging Kit with Hose & Gas Cylinder × 1 set
