Chinese Factory Cost-effective Hydraulic Vibratory Compator

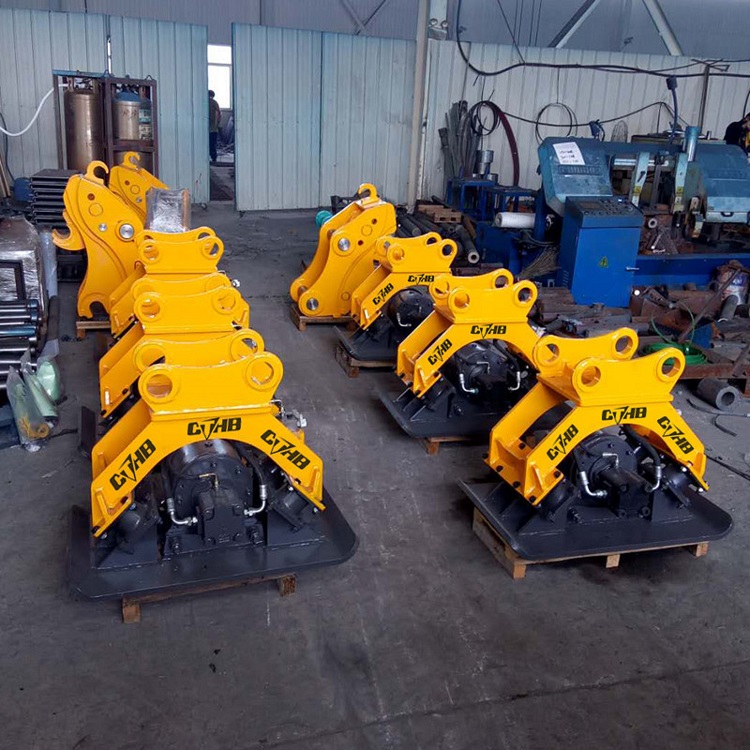

1.Product Photos:

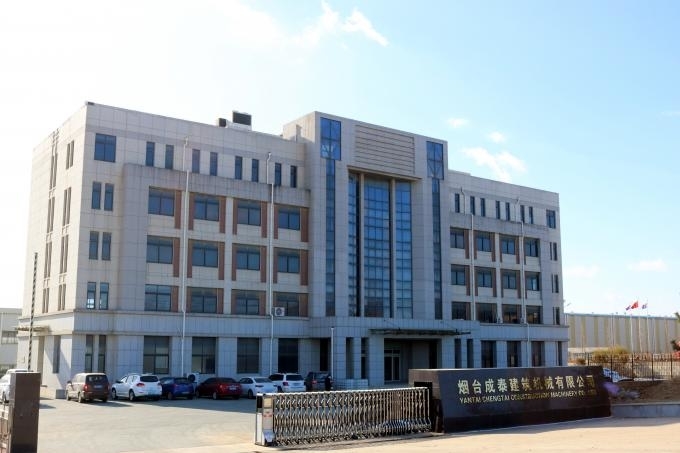

2. Factory Introduction:
Yakai Precision Machinery is a trading company that mainly exports
hydraulic breaker hammer and other excavator attachments in China,
founded in 2013.
Since the found year, we focus on exporting hydraulic attachments.
We have been running our factory for more than 10 years with the
professional experience. Yakai can export many other products and
help our customers source most kinds of products in China, not only
limited to excavator attachments.
Our main products are Hydraulic Breaker Hammer, Quick Hitch, Auger
Drill, Hydraulic Plate Compactor, Hydraulic Grapple, etc. can be
widlely mounted on excavators, skid steer loaders, backhoe loaders, and other
hydraulic machines.
We always hold the service tenet of Client first, Quality first in
our mind, and are strict with the Quality inspection process.
Yakai Welcome Your Visit!
3. Yakai Hydraulic Compactor Specification
| Category | Unit | CTHB-HC mini | CTHB-HC 02 | CTHB-HC 04 | CTHB-HC 06 | CTHB-HC 08 | CTHB-HC 10 |
| Height | mm | 490 | 550 | 750 | 930 | 1000 | 1100 |
| Width | mm | 320 | 410 | 550 | 700 | 900 | 900 |
| Impulse Force | ton | 2 | 2.5 | 4 | 6.5 | 11 | 15 |
| Vibration Frequency | rpm | 1800 | 1800 | 2000 | 2000 | 2200 | 2200 |
| Oil Flow | I/min | 25-35 | 35-45 | 45-85 | 85-105 | 120-170 | 120-170 |
| Working Pressure | kg/cm^2 | 90-110 | 90-110 | 100-130 | 100-150 | 150-200 | 150-200 |
| Bottom Measurement | mm | 500*350 | 630*400 | 900*550 | 1160*700 | 1350*900 | 1500*1000 |
| Compactor Weight | kg | 350-450 | 450-550 | 550-600 | 750-850 | 900-1000 | 1100-1300 |
Suitable Carrier Weight | ton | 1-2 | 3-5 | 6-10 | 11-17 | 18-27 | 30-40 |
* The Parameter above may change with the technology improvement,
will not notice additionally, please understand.
4.Plate Compactor Introduction
Vibration compactor is a kind of excavator attachments and working
device of construction machinery. It could be used for ramming of
construction foundation and trench backfill in highway, municipal,
water supply, railway and many other construction tasks.
It is mainly suitable for soil type with low cohesion and friction
between compacted particles, such as river sand, gravel and
asphalt. The thickness of the vibratory ramming layer is large, and
the compaction degree can meet the requirements of high-grade
foundations such as highways.
