Earth Drilling Tool Auger Yakai CTHB Hydraulic Earth Auger For
Excavator Earth Drill

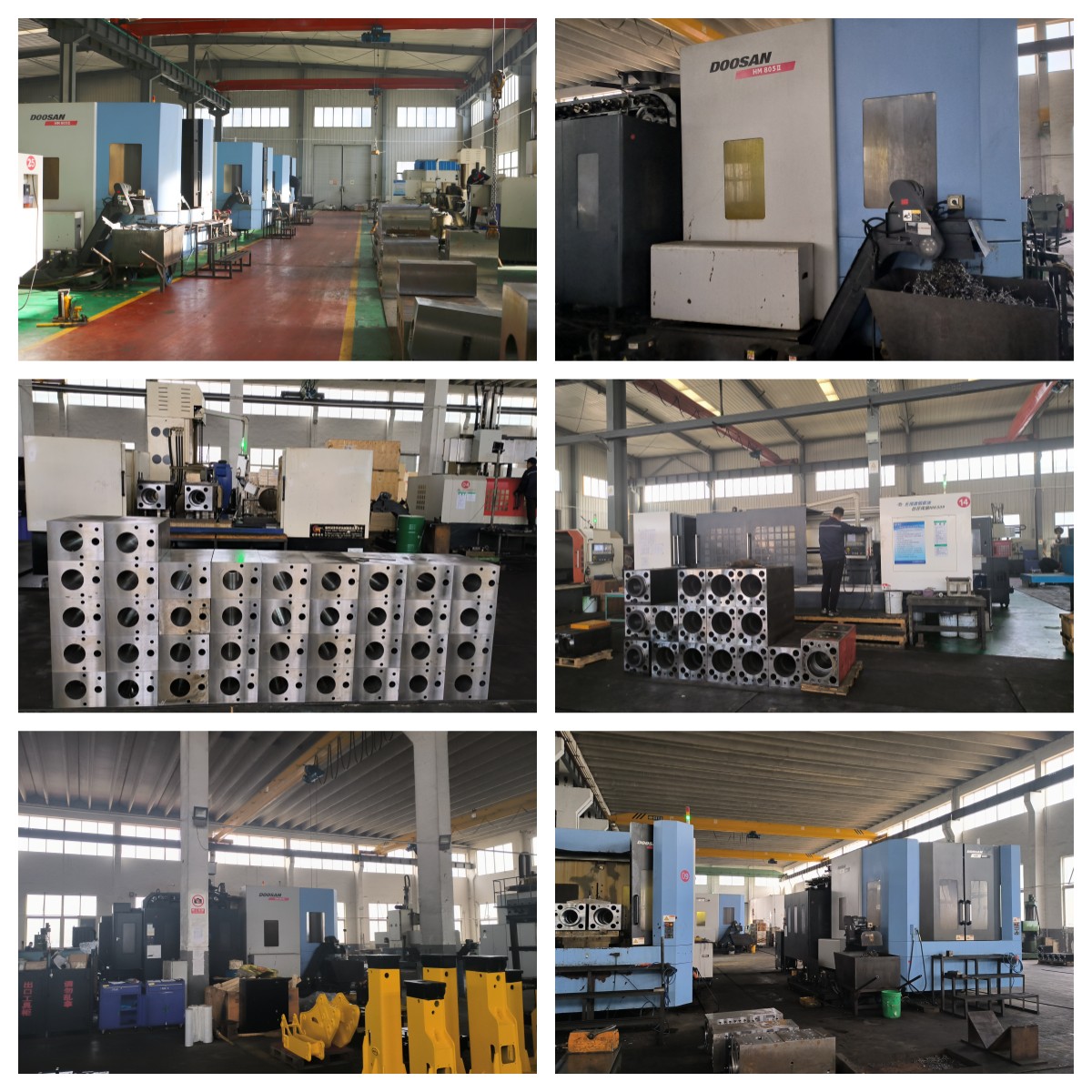

1. Factory Introduction
Yakai Precision Machinery is a trading company that mainly exports
hydraulic breaker hammer and other excavator attachments in China,
founded in 2013.
Since the found year, we focus on exporting hydraulic attachments.
We have been running our factory for more than 10 years with the
professional experience. Yakai can export many other products and
help our customers source most kinds of products in China, not only
limited to excavator attachments.
Our main products are Hydraulic Breaker Hammer, Quick Hitch, Auger
Drill, Hydraulic Plate Compactor, Hydraulic Grapple, etc. can be
widlely mounted on excavators, skid steer loaders, backhoe loaders, and other
hydraulic machines.
We always hold the service tenet of Client first, Quality first in
our mind, and are strict with the Quality inspection process.
Yakai Welcome Your Visit!
2. Working Shot
3. Yakai Hydraulic Earth Auger Specification
| Auger Model | 2000 | 3000 | 4500 | 6000 | 8000 | 10000 | 15000 | 20000 | 25000 | 50000 |
| Suitable Carrier Weight | 1.5-3T | 2-4T | 3-5T | 4-6T | 6-8T | 6-10T | 10-15T | 15-20T | 15-25T | 20T-35T |
| Torque(MAX) | 2000Nm | 3000Nm | 4500Nm | 6000Nm | 8000Nm | 9000Nm | 15000Nm | 20000Nm | 25000Nm | 50000Nm |
| Working Pressure | 60-240Bar | 70-240Bar | 70-240Bar | 80-240Bar | 80-240Bar | 80-240Bar | 80-240Bar | 80-240Bar | 80-310Bar | 80-360Bar |
| Flow | 20-70Lpm | 25-70Lpm | 20-80Lpm | 50-85Lpm | 50-85Lpm | 50-125Lpm | 60-180Lpm | 75-220Lpm | 75-280Lpm | 75-320Lpm |
| Output Shaft(mm) | OD65,Hex35 | OD65,Hex51 | OD65,Hex51 | 75 Square | 75 Square | 75 Square | 75 Square | 75 Square | 75 Square | 110 Square |
| Machine Diameter | 190mm | 232mm | 238mm | 245mm | 272mm | 280mm | 338mm | 345mm | 355mm | 420mm |
| Rotating Speed (Max) | 65r/min | 60r/min | 56r/min | 50r/min | 48r/min | 45r/min | 38r/min | 35r/min | 28r/min | 20r/min |
| Machine Weight | 28kg | 74kg | 95kg | 134kg | 160kg | 168kg | 240kg | 272kg | 320kg | 540kg |
| Drilling Diameter(mm) | 100-400 | 100-600 | 100-700 | 100-700 | 100-900 | 100-1000 | 200-1500 | 200-1500 | 300-1800 | 300-1800 |
* For other diameters and lengths, we can customize service,
OEM/ODM
* The Parameter above may change with the technology improvement,
will not notice additionally, please understand.
4. The Structure of Hydraulic Auger
1) Cradle hitch

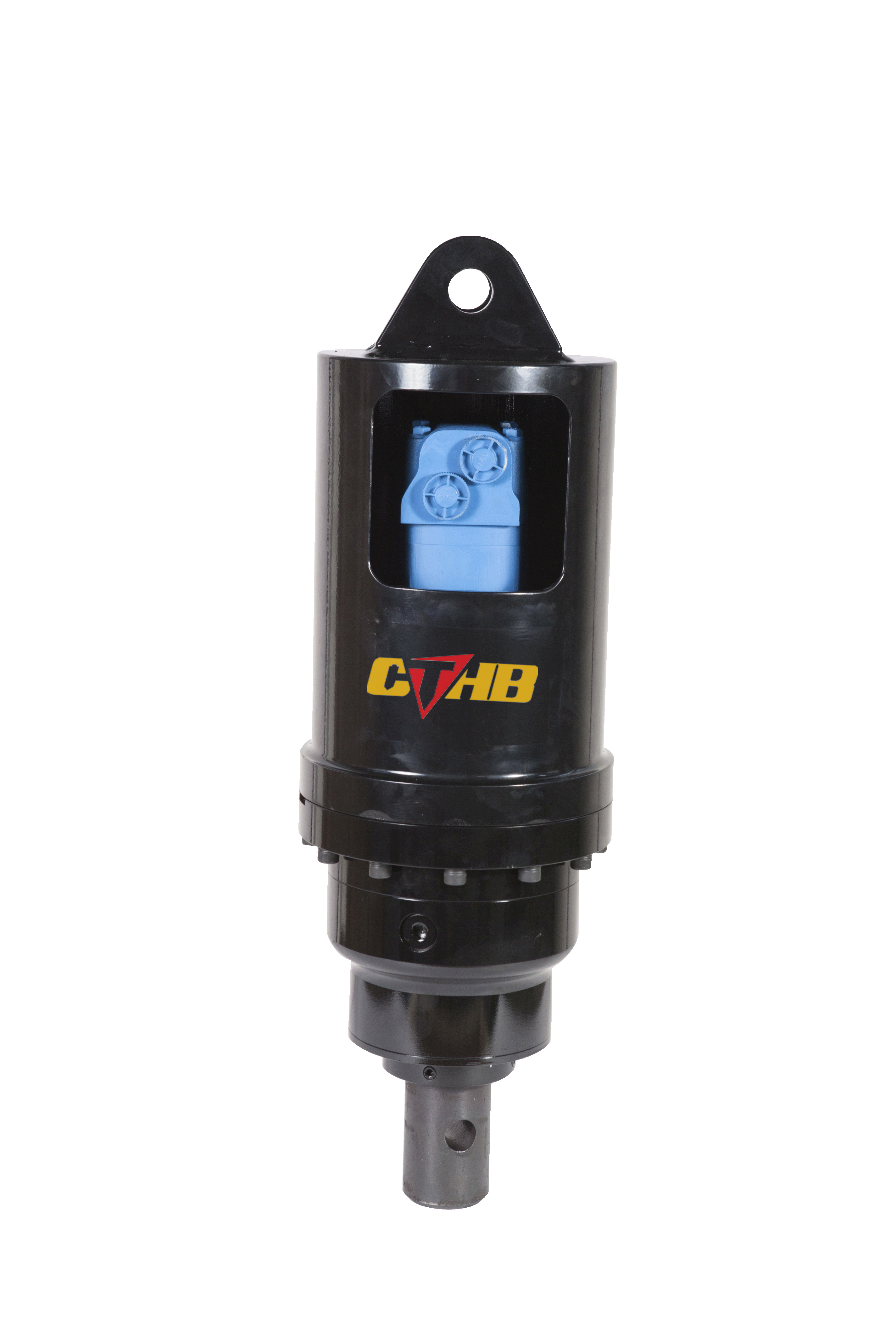

2) Auger drive
Depands on the carrier weight.

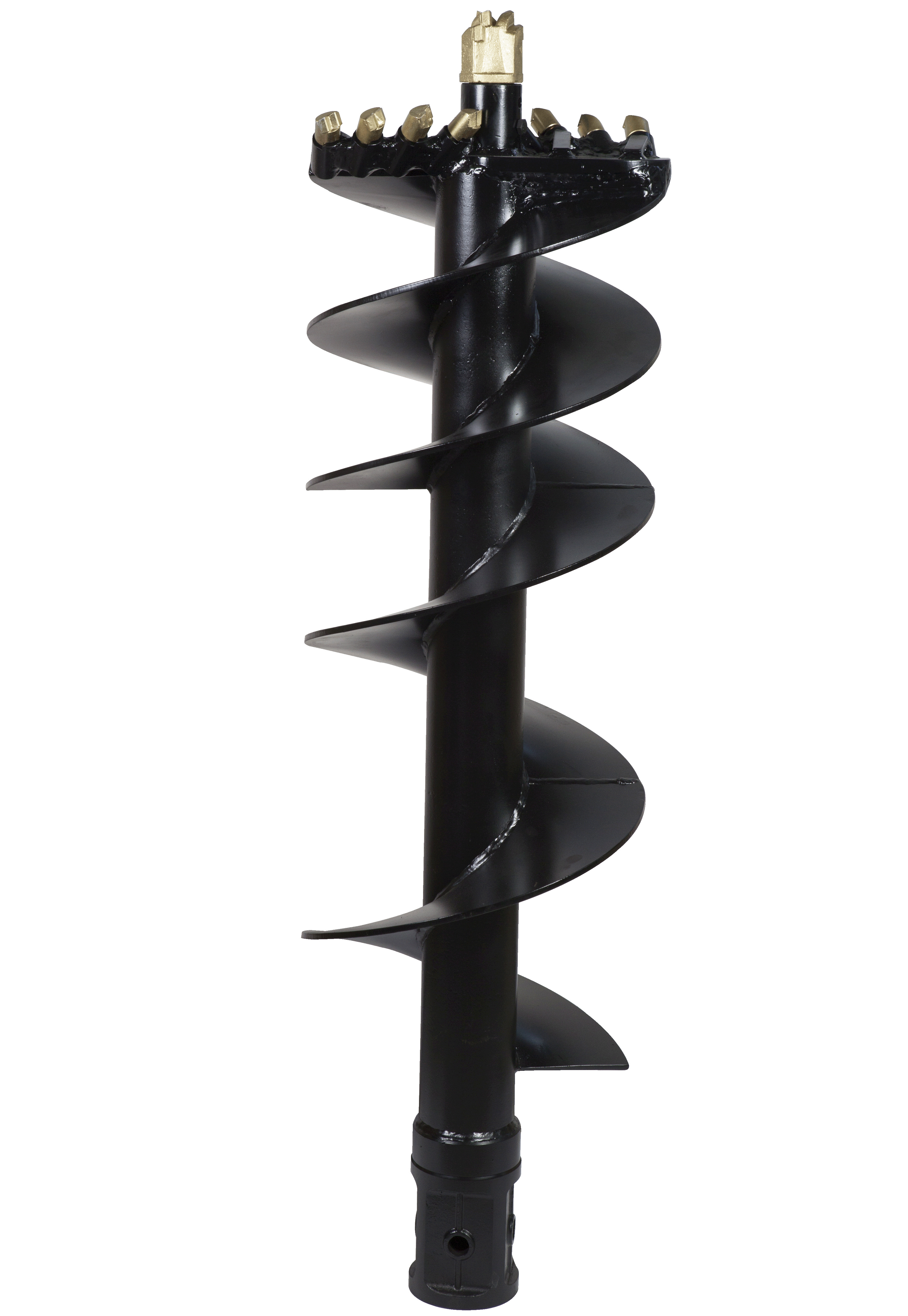

3) Auger drill
Depands on the hole diameter
4) Extension shaft
Depands on the hole depth
5)Auger teeth and pilot
Depands on the working situation
