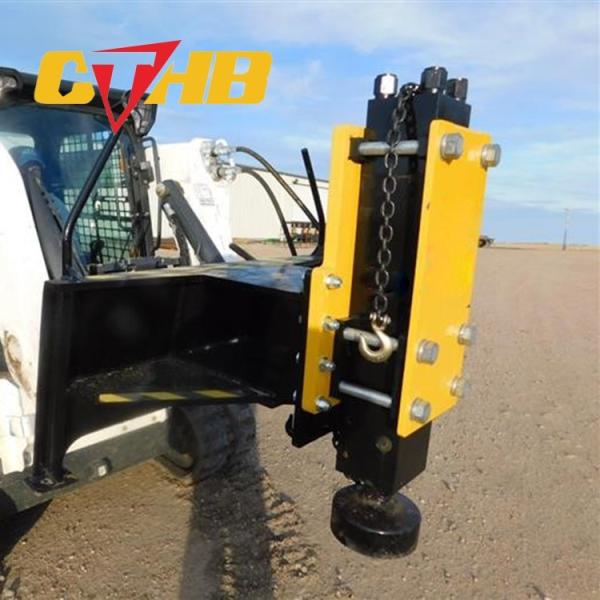

OEM Post Driver Yakai CTHB Hydraulic Pile Driver Post Hammer
Mounted On Skid Steer
1. Hydraulic Post Driver
Since the year 2018, the hydraulic post driver has been needed in
the fencing industry and rental companies worldwide . Fence
builders, farmers, road signs and other related workers need
something better than a manual post driver to save time and
increase productivity. That's why we invented the hydraulic post
driver, which can be mounted on excavators, mini excavators or skid
steer loaders simply by adjusting the adapter. After our hydraulic
post drivers were launched in the market, people were first
attacked by improved and improved designs, then liked our quality.
The overall market has responded well. Today, many individual
workers, homeowners and farmers use our hydraulic post drivers to
hammer their posts, while companies such as fencing companies and
construction companies use hydraulic post drivers to grow their
businesses.
2. Yakai Post Driver Parameter
| Skid Steer Loader Attachment ----- Post Driver Chart |
| Model | Body Weight (incl. chisel tool) (kg) | Total Weight (kg) | Size (L*W*H) (mm) | Working Oil Flow (I/min) | Hydraulic Pressure (kg/cm^2) | Blow Frequency (bmp) | Chisel Diameter (mm) | Carrier Weight (ton) |
| CTHBP530 | 89 | 155 | 1417*350*305 | 25-50 | 90-120 | 600-1100 | 53 | 2.5-4.5 |
| CTHBP680 | 156 | 361 | 1660*328*486 | 40-70 | 110-140 | 500-900 | 68 | 4-7 |
| CTHBP750 | 214 | 450 | 1712*328*486 | 50-90 | 120-150 | 400-800 | 75 | 6-9 |
* The Parameter above may change with the technology improvement,
will not notice additionally, please understand.
3. Chisel of Post Driver
All the chisels are standard size, if you have customized
requirements, we can offer OEM/ODM with extra cost.
| Chisel Top Diameter | Total Length | Chisel Bottom Diameter |
| φ68-φ70 | 600 mm | φ 100/120/135/140 |
| φ100 | 750 mm | φ 135/140/150 |
| φ140 | 960 mm | φ 180/190/200 |
| φ155 | 1100 mm | φ 200/220 |
*Chisel Bottom Diameter Larger than 230 mm need to ask our team

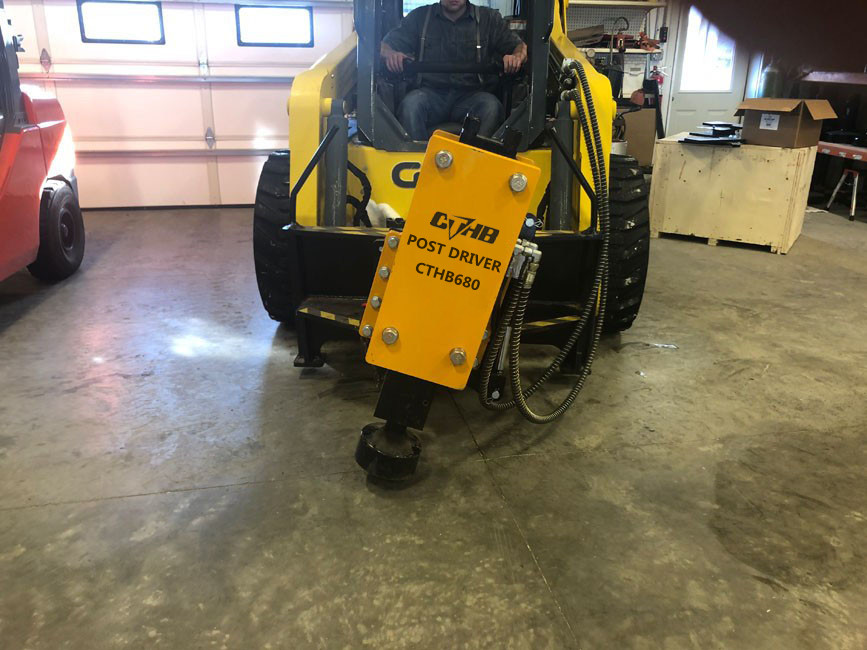

4. Working Shot
5. Post Driver Application
a. Drive T-Posts, Pipes
b. Tent stakes, wooden stakes, and many other stakes.
c. Pipe fences, farm fences, and all kinds of fences.
d. Traffic signals or other sign Post
e. Guard rails, railroad ties.
